G-Mac Germany Online UPS & Voltage Stabilizers in Bangladesh
Engineered with German precision for mission-critical industrial manufacturing, hospitals, and heavy infrastructure. Low-frequency double-conversion Online UPS with integrated galvanic isolation transformers exclusively imported and supported by TNS Engineering Ltd.
German Precision Engineering with Galvanic Isolation Architecture
Industrial durability for harsh electrical environments where downtime is not an option
In modern computerized manufacturing facilities, raw power grid disturbances such as lightning-induced spikes, neutral-to-ground noise, and extreme harmonic distortion can bypass standard electronic power filters. G-Mac (Germany) low-frequency Online UPS systems incorporate a massive built-in galvanic isolation transformer on the output stage. This physical magnetic coupling completely isolates the consumer machinery from common-mode electrical faults on the input grid.
As the official Bangladesh importer and engineering partner, TNS Engineering Ltd. deploys G-Mac power systems in medical imaging wings (MRI, CT, catheterization labs), automated textile spinning lines, and high-frequency communication datacenters. Every deployment includes on-site load harmonic analysis, computerized battery sizing, and 24/7 dedicated engineering service.
True Galvanic Isolation
Heavy copper isolation transformer eliminates common-mode transients, neutral shift, and DC injection into load.
IGBT Inverter Technology
Advanced DSP microprocessors manage high-speed IGBT switching for clean, distortion-free pure sine wave output (<2% THD).
24/7 Engineering Hotline
Central service hub in Banasree, Dhaka with factory-certified field technicians for rapid on-site emergency dispatch.
Engineering Comparison: G-Mac Low-Frequency vs High-Frequency UPS
Why heavy industrial machinery and sensitive medical diagnostics demand transformer-based isolation.
| Technical Feature | G-Mac Low-Frequency (Transformer) | Standard High-Frequency (Transformerless) |
|---|---|---|
| Output Isolation | Built-in copper galvanic isolation transformer | Electronic filtering only (No galvanic isolation) |
| Inrush Current Tolerance | Extremely high (handles 3x–5x inductive motor starts) | Moderate (trips or transfers to bypass during surges) |
| Protection Against Grid Spikes | Complete physical barrier against lightning & grid surges | Dependent on sacrificial MOV surge suppressors |
| Design Operational Lifespan | 15 – 20+ Years in rugged environments | 7 – 10 Years in controlled environments |
| Primary Applications | Hospitals, MRI/CT, CNC automation, heavy textile looms | Office workstations, standard IT server racks |
Featured G-Mac Industrial Systems
Dresden (1:1 Phase), Saarland (3:1 Phase), and Hanover (3:3 Phase) Low Frequency Online UPS models

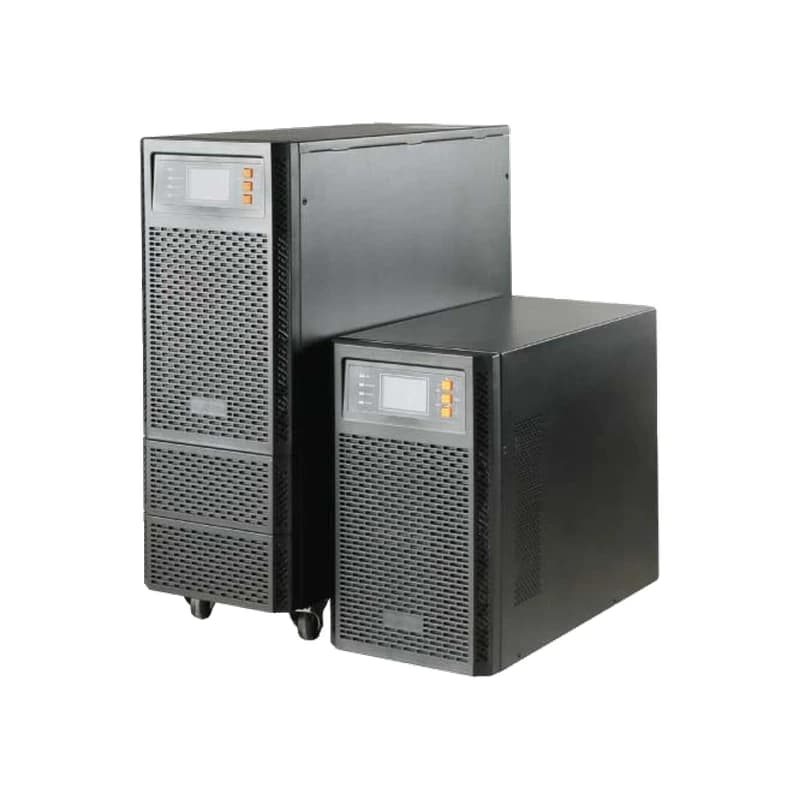

BREMEN-HH1101 High Frequency Online UPS (1KVA)
Model: BREMEN-HH1101
BREMEN-HH1102 High Frequency Online UPS (2KVA)
Model: BREMEN-HH1102
BREMEN-HH1103 High Frequency Online UPS (3KVA)
Model: BREMEN-HH1103

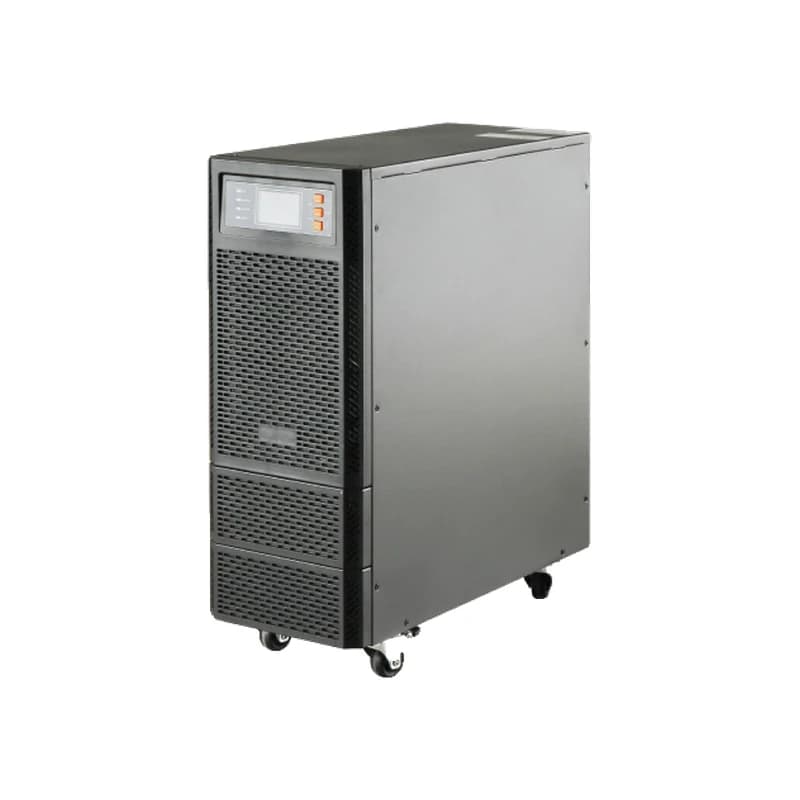

BREMEN-HH1106 High Frequency Online UPS (6KVA)
Model: BREMEN-HH1106
BREMEN-HH1110 High Frequency Online UPS (10KVA)
Model: BREMEN-HH1110

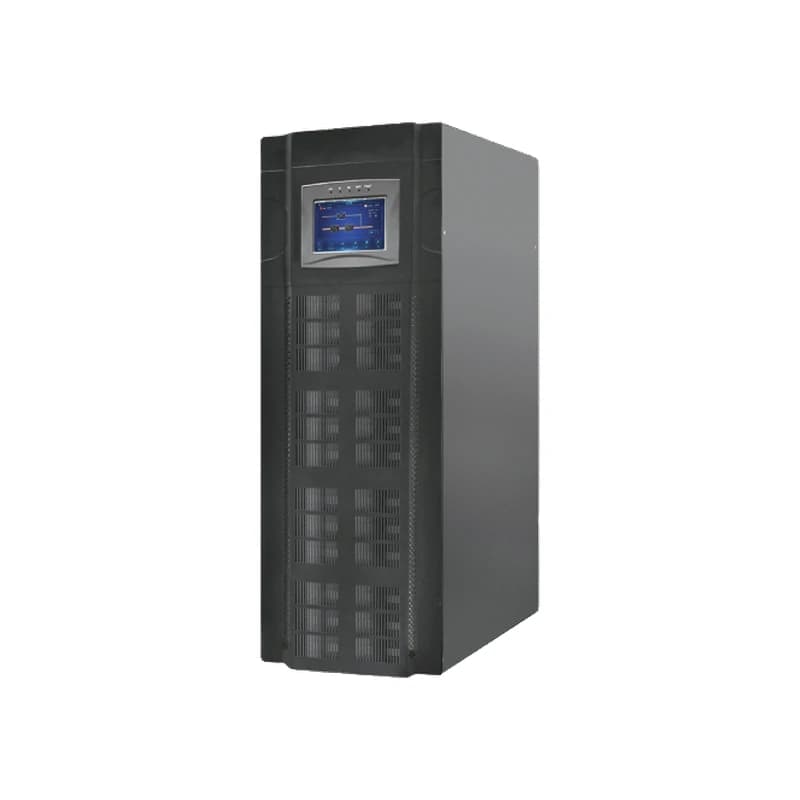

HANOVER-LX3310 3:3 Phase Low Frequency Online UPS (10KVA)
Model: HANOVER-LX3310
HANOVER-LX3315 3:3 Phase Low Frequency Online UPS (15KVA)
Model: HANOVER-LX3315
HANOVER-LX3320 3:3 Phase Low Frequency Online UPS (20KVA)
Model: HANOVER-LX3320
HANOVER-LX3330 3:3 Phase Low Frequency Online UPS (30KVA)
Model: HANOVER-LX3330
Frequently Asked Questions about G-Mac Germany in Bangladesh
Q:Who is the official importer of G-Mac Germany in Bangladesh?
TNS Engineering Ltd is the official importer and engineering distributor of G-Mac Germany industrial power systems in Bangladesh, providing low-frequency Online UPS with galvanic isolation, industrial servo stabilizers, and factory warranty support.
Q:What is the primary advantage of G-Mac low-frequency Online UPS?
G-Mac low-frequency UPS systems feature integrated heavy-duty galvanic isolation transformers at the output stage, completely isolating critical loads from grid noise, surges, ground loops, and DC voltage offsets.
Q:Which industries require G-Mac galvanic isolation UPS systems in Bangladesh?
Hospitals with MRI/CT scanners and cath labs, pharmaceutical automation cleanrooms, textile computerized jacquard looms, and heavy CNC machining centers rely on G-Mac for zero-downtime protection against extreme electrical disturbances.
Q:What is the relationship between G-Mac and Howa Power?
G-Mac represents German-engineered heavy industrial power topologies—specifically low-frequency transformer-based UPS lines (Dresden, Saarland, Hanover)—distributed and integrated alongside Howa Power conditioning infrastructure by TNS Engineering Ltd.
Q:What warranty and engineering services are included with G-Mac systems?
Every G-Mac system supplied by TNS Engineering includes a standard 12-month factory warranty, complimentary on-site load testing, comprehensive harmonic analysis, and 24/7 emergency response from certified power systems engineers.
Source Genuine G-Mac Galvanic Isolation Systems from the Official Importer
Protect your multi-million taka medical scanners, textile looms, and automated production machinery with certified German power electronics.
