Stock Available

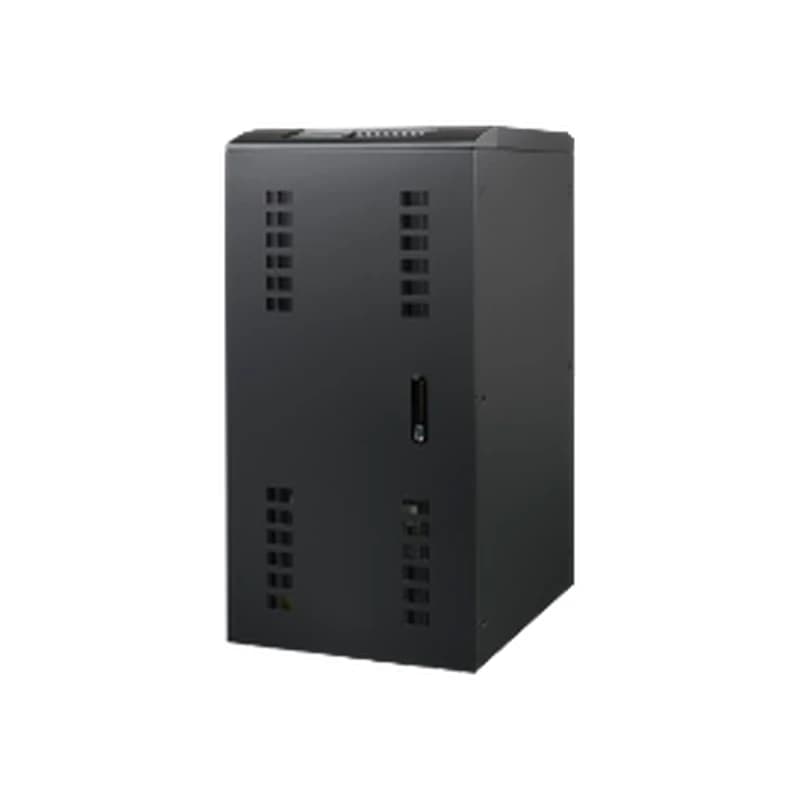

The 3B-10K 10KVA UPS (3-Phase Input, 1-Phase Output) delivers reliable backup power, stable output, and advanced protection for sensitive equipment. Designed for commercial and industrial applications, it ensures dependable performance and continuous power supply.
Direct importer wholesale, dealer & corporate project pricing available. Get official quotation with invoice & warranty.
| Item / Parameter | Specification / Technical Value |
|---|---|
| Capacity | 10KVA |
| MODEL | 3B-10K |
| Brand | Reros |
| Input Voltage | 380±25% |
| Input Frequency | 45～66 Automatically select synchronization range according to grid frequency |
| Input Phase | 3φ4W+PE |
| Output Power factor | 0.8/0.9 |
| Output Voltage | 220/230/240±1％，Isolation transformer output |
| Output Frequency | 50/60±0.5%(Free oscillation) |
| Transfer time | 0 ms |
| Waveform | 125% load keep 10min，150% load keep 60s |
| Crest factor | >3:1 |
| Output ways | Terminal Block |
| Parallel function | Yes(for optional) |
| Manual maintenance bypass | with no transfer time bypass maintenance switch |
| Battery management | Automatic timing/floating conversion, has battery self-testing function, automatic alarm and judge when battery abnormal |
| Efficiency | ≥90% (AC mode @ full loads) |
| Communication function | RS232 / RS485 interface, support for power monitor software |
| SNMP（optional） | Can be network monitored by SNMP adapter |
| Noise (dB) | <60(within 1 meter) |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection |
| Protection | Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection |
| Humidity | 0～95%，No Condensing |
| Working Temperature | 0～40℃ |
| Size(W×D×H) | 305mm×596mm×1065mm |
| Weight | 160 KG |
Product datasheets and technical manuals can be requested directly.
