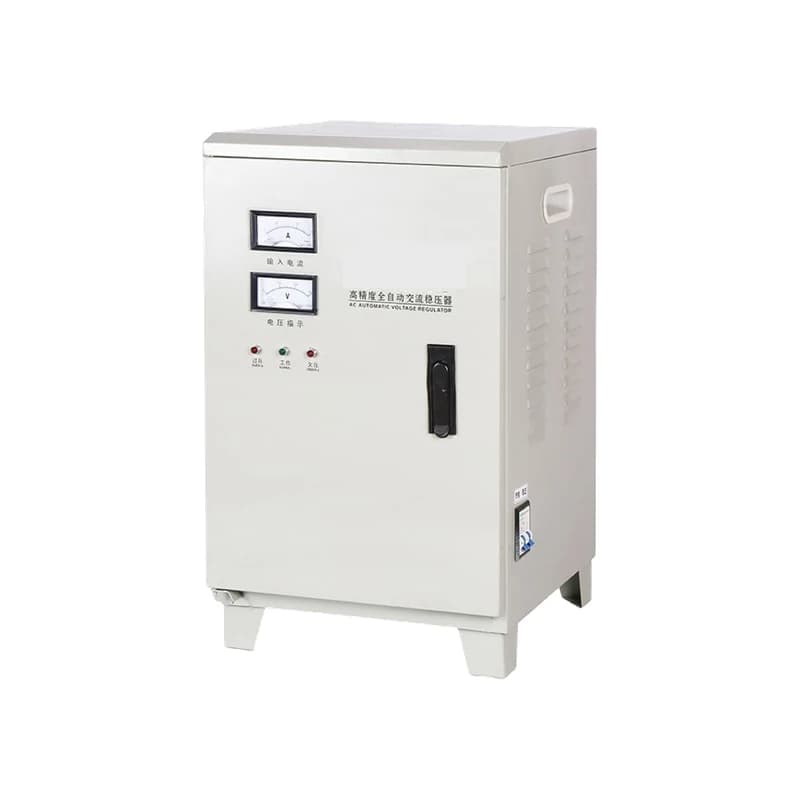

SVC-15KVA 1-Phase Automatic Voltage Stabilizer, supplied by the official distributor in Bangladesh. Designed for stable and reliable voltage regulation with warranty coverage and professional installation.
Direct importer wholesale, dealer & corporate project pricing available. Get official quotation with invoice & warranty.
Main Features
| Item / Parameter | Specification / Technical Value |
|---|---|
| Brand | TMUX (SAKO) |
| Capacity | 15KVA |
| Model | SVC-15KVA |
| Phase | Single-phase |
| Input Voltage | AC150V~250V |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | AC 220 ± 3 % (Adjustable) |
| Output Frequency | 50Hz/60Hz |
| Protection | Over/Low Voltage Protection, Overload Protection, Short-circuit Protection, Over temperature Protection |
| Efficiency | >= 96% |
| Environment | Humidity 20% to 90%, Temperature -5°C 60°C |
| Control System | Servo motor, Microprocessor Controlled, Full-automatic |
| Cooling system | Fan Cooling |
| Delaying | 5 secs(Short)/240secs(Long) |
| Noise Level | ≤50dB |
| Dimension | W×D×H-440mm×380mm×850mm |
| Weight | 56.5KG |
An Automatic Voltage Stabilizer maintains a constant output voltage despite fluctuations in the incoming power supply. The single-phase compensated stabilizer automatically regulates and corrects voltage variations caused by changes in load, ensuring stable, reliable, and safe operation of electrical and electronic equipment.
Product datasheets and technical manuals can be requested directly.
