Highlights
Program Control
Patent Split Current Design
High Quality Cooling Fan
LCD Display
Full Mechanical Bypass
Voltage Protection
220V&110V output both
High Temp. Resistance Materials
Surge Protection Device
Home>Products>AUTOMATIC VOLTAGE REGULATOR>Single Phase (AVR)>AVS-50KVA Automatic Voltage Regulator (1P)

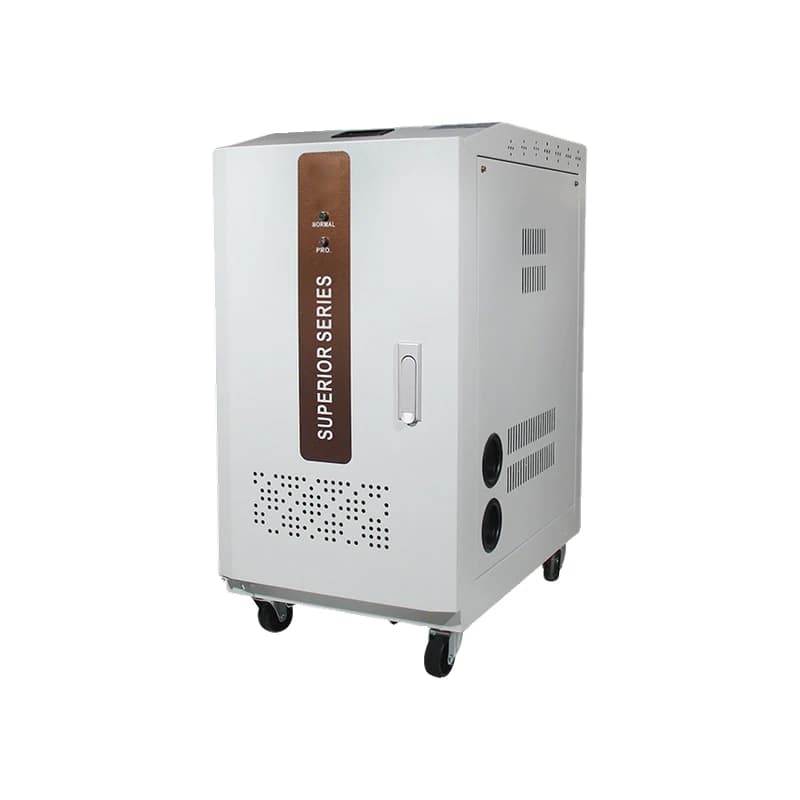

AVS-50KVA Automatic Voltage Regulator (1P)
50KVA Single-Phase Automatic Voltage Stabilizer (AVS) provides stable and regulated voltage, protecting sensitive electrical and electronic equipment from voltage fluctuations and ensuring reliable performance.
Official Distributor RatePrice on Request (B2B, Dealer & Retail)
Direct importer wholesale, dealer & corporate project pricing available. Get official quotation with invoice & warranty.
Genuine Warranty
Certified Quality
24/7 Field Support
| Item / Parameter | Specification / Technical Value |
|---|---|
| Brand | HOWAPOWER |
| Capacity | 50KVA |
| Model | SR-50KVA |
| Phase | Single Phase |
| Voltage | 220V/110V±2.5% |
| Frequency | 50Hz/60Hz |
| Admitted Load Variation | Up to 100% |
| Cooling | Natural Cooling With Fan Source |
| Temperature | -25 °C to 60 °C |
| Admitted Overload | 150% in 2min |
| Protection Degree | IP21 |
| Instrumentation | Digital Meter(Input & Output Voltage, Current) |
| Protection | Output Class, Surge arrestor, Load Protection against over/under Voltage, manual by-pass line |
| Dimension | W×D×H-850mm×380mm×920mm |
Application
- Home & Residential Applications
- Small Offices & Workstations
- Retail Shops & Showrooms
- Food & Beverage Equipment
- Telecommunication Equipment
- Medical & Diagnostic Equipment
- IT & Networking Equipment
- Renewable Energy & Solar Systems
Questions & Answers for AVS-50KVA Automatic Voltage Regulator (1P)
It is a 50 kVA automatic voltage stabilizer (AVR) designed to correct unstable high or low incoming grid voltage and deliver a safe, steady voltage to connected equipment. 50kva-avs-1p
With a typical power factor of around 0.8, a 50 kVA stabilizer supports roughly 40 kW of active electrical load.
AVS-50KVA units are commonly manufactured as three-phase systems (supporting 380V/400V lines), though single-phase high-capacity variants also exist depending on your specific power distribution setup.
Standard protections include over-voltage, under-voltage, overload, short-circuit, and phase-failure/phase-lack protection to protect both the stabilizer and your machinery.
Most models handle a wide input window (such as 304V–456V line voltage for three-phase systems), though exact thresholds vary by manufacturer design.
Yes. Many AVS-50KVA units include a built-in bypass switch allowing you to route raw grid power directly to your load during maintenance or unit servicing.
It typically uses a motorized servo system with carbon brushes or a static solid-state (SCR) design to automatically adjust turns ratio and stabilize output.
Modern AVS units feature digital LED or multi-functional LCD screens showing real-time input voltage, output voltage, load current, and working status.
It is meant for indoor use in clean areas where ambient temperatures stay between -5°C and +40°C, away from excessive dust, corrosive gases, or high humidity.
It is used for CNC machines, medical imaging/X-ray systems, telecommunication equipment, large server rooms, and heavy commercial or industrial office setups.
Product datasheets and technical manuals can be requested directly.
