Question 1

What is a 12.8V 300Ah LiFePO4 battery?

Accepted Answer

A 12.8V 300Ah LiFePO4 battery is a rechargeable lithium iron phosphate battery designed to provide reliable DC power for applications such as solar energy storage, RVs, boats, backup power systems, and off-grid installations.

Question 2

What does 12.8V 300Ah mean?

Accepted Answer

12.8V refers to the battery's nominal voltage, while 300Ah refers to its rated capacity. The approximate nominal energy capacity is 3.84 kWh, calculated as 12.8V × 300Ah.

Question 3

How much energy can a 12.8V 300Ah LiFePO4 battery store?

Accepted Answer

At its nominal rating, a 12.8V 300Ah battery stores approximately 3,840Wh (3.84kWh) of energy. Actual usable energy depends on factors such as the battery's BMS settings, discharge rate, temperature, and recommended depth of discharge.

Question 4

What is LiFePO4?

Accepted Answer

LiFePO4 stands for lithium iron phosphate, a lithium-ion battery chemistry known for good thermal stability, long cycle life, and reliable performance.

Question 5

How long does a 12.8V 300Ah LiFePO4 battery last?

Accepted Answer

The service life depends on charging and discharging conditions, temperature, depth of discharge, and battery quality. Properly designed LiFePO4 batteries can provide thousands of cycles.

Question 6

Is a 12.8V 300Ah LiFePO4 battery suitable for solar energy storage?

Accepted Answer

Yes. It can be used in solar storage systems to store electricity generated by solar panels for later use. The solar charge controller must be compatible with the battery's charging requirements.

Question 7

Can I use this battery for an RV or camper?

Accepted Answer

Yes. A 12.8V 300Ah LiFePO4 battery can be used in many RV and camper applications, including lighting, refrigerators, electronics, water pumps, and other DC or inverter-powered equipment, provided the system is correctly sized.

Question 8

Can I use a 12.8V 300Ah LiFePO4 battery in a boat?

Accepted Answer

Yes. LiFePO4 batteries are commonly used for marine applications because of their high energy density and long cycle life. The battery should be installed according to the manufacturer's marine installation and protection requirements.

Question 9

Does a LiFePO4 battery require a special charger?

Accepted Answer

Yes. A charger designed or configured for LiFePO4/LFP batteries should be used. The charging voltage and current must comply with the battery manufacturer's specifications.

Question 10

Can I charge a 12.8V 300Ah LiFePO4 battery with a lead-acid charger?

Accepted Answer

Not necessarily. Some chargers have suitable lithium/LiFePO4 settings, but a conventional lead-acid charger may use charging profiles that are unsuitable for LiFePO4 batteries. Always check the battery and charger specifications before use.

Question 11

Does the battery have a built-in BMS?

Accepted Answer

Many 12.8V 300Ah LiFePO4 batteries include a Battery Management System (BMS), but this depends on the specific model. Check the product datasheet to confirm the BMS functions and current rating.

Question 12

What does the BMS do?

Accepted Answer

A BMS monitors and helps protect the battery against conditions such as overcharge, over-discharge, excessive current, and abnormal temperature. Some BMS designs also provide cell balancing and communication functions.

Question 13

Can I connect multiple 12.8V 300Ah batteries together?

Accepted Answer

In many battery systems, multiple compatible batteries can be connected in parallel to increase capacity or in series to increase voltage. However, this is only appropriate when the manufacturer specifically permits the configuration and provides connection requirements.

Question 14

Can two 12.8V 300Ah batteries be connected in parallel?

Accepted Answer

If the batteries are designed for parallel operation, two 12.8V 300Ah batteries can provide approximately 600Ah at 12.8V nominal voltage, or about 7.68kWh nominal energy.

Question 15

Can two 12.8V 300Ah batteries be connected in series?

Accepted Answer

What is the nominal energy of a 12.8V 300Ah LiFePO4 battery? The nominal energy capacity is approximately 3.84kWh, calculated by multiplying 12.8V by 300Ah.

Question 16

Is a 12.8V 300Ah LiFePO4 battery rechargeable?

Accepted Answer

Yes. LiFePO4 batteries are rechargeable and can be used through repeated charge and discharge cycles when operated within the manufacturer's specifications.

Question 17

How does LiFePO4 compare with a lead-acid battery?

Accepted Answer

LiFePO4 batteries generally offer longer cycle life, lower weight, more usable capacity, and more consistent voltage during discharge than comparable lead-acid batteries. The exact performance depends on the specific battery models being compared.

Question 18

Is a 12.8V 300Ah battery heavy?

Accepted Answer

The weight depends on the battery's cell design, enclosure, BMS, and other components. LiFePO4 batteries are typically lighter than lead-acid batteries with comparable usable energy.

Question 19

What is the voltage range of a 12.8V LiFePO4 battery?

Accepted Answer

The actual operating voltage varies according to the battery's state of charge, load, charging conditions, and BMS settings. The manufacturer's specified minimum and maximum voltages should always be followed.

Question 20

Can I use a 12.8V 300Ah LiFePO4 battery for an electric trolling motor?

Accepted Answer

It can be suitable for certain trolling-motor systems if the motor voltage, continuous current requirement, peak current, and battery discharge rating are compatible.

Question 21

Can I use this battery for an off-grid power system?

Accepted Answer

Yes. A 12.8V 300Ah LiFePO4 battery can be incorporated into an off-grid power system together with compatible solar panels, charge controllers, inverters, and other system components.

Question 22

Can I use a DC-DC charger with a 12.8V 300Ah LiFePO4 battery?

Accepted Answer

Yes, a properly configured DC-DC charger can be used in applications such as RVs, boats, and vehicles. The charger should support LiFePO4 batteries and remain within the battery's specified charging limits.

Question 23

Can an alternator charge a 12.8V 300Ah LiFePO4 battery?

Accepted Answer

It may be possible, but the charging system should be properly designed. A suitable DC-DC charger is often used to control charging current and provide an appropriate charging profile.

Question 24

Can I connect a 12.8V 300Ah LiFePO4 battery directly to solar panels?

Accepted Answer

It is generally not recommended to connect solar panels directly to the battery. A compatible solar charge controller should be installed between the solar panels and battery.

Question 25

What type of inverter should I use with a 12.8V 300Ah battery?

Accepted Answer

Use an inverter designed for a 12V-class battery system with an input voltage range compatible with the
battery. The inverter's continuous and surge power ratings should also match the intended loads and the
battery's discharge capability.

Question 26

Can the battery power a refrigerator?

Accepted Answer

Yes, provided the battery and inverter are appropriately sized for the refrigerator's running power and startup surge. Runtime will depend on the refrigerator's actual energy consumption and operating conditions.

Question 27

Can the battery be used for home energy storage?

Accepted Answer

Yes, it can be used as part of a home energy-storage system, particularly for backup or off-grid applications. Multiple batteries may be required for larger household loads.

Question 28

How can I maximize the life of my LiFePO4 battery?

Accepted Answer

Use a compatible charger, stay within the manufacturer's voltage and current limits, avoid excessive heat, follow the recommended depth-of-discharge range, and store the battery according to the manufacturer's instructions.

Question 29

What information should I request from a LiFePO4 battery manufacturer?

Accepted Answer

Before purchasing, request the battery datasheet and information about cell type, nominal capacity, charge and discharge limits, BMS specifications, cycle-life testing conditions, operating temperature, certifications, dimensions, weight, warranty, and supported series/parallel configurations.

Question 30

What should I check before buying a 12.8V 300Ah LiFePO₄ battery?

Accepted Answer

Check the cell grade, BMS continuous charge/discharge ratings, cycle-life test conditions, usable capacity, charging voltage/current, low-temperature protection, operating-temperature range, warranty, certifications, enclosure quality, communication features, and manufacturer's test data.

Item / Parameter	Specification / Technical Value
Capacity	12.8V300Ah
Model	RPT-Li-128300
Rated Voltage	12.8V
Rated Capacity	300Ah
Rated Energy	3840Wh
Output Voltage Range	10V∿14.6V
Charging Voltage	14V
Cut-Off Voltage	10V
Max Current Charging	100A
Recommended Charging Current	50A
Temperature	Humidity 5%∿95%, Temperature: -20°C∿ 60°C
Cycle Life	>6000 times (0.2C, @25°C, 80%DOD)
Design Life	>10Years
Dimension	W×D×H–265mm×495mm×214mm
Weight	27 KG

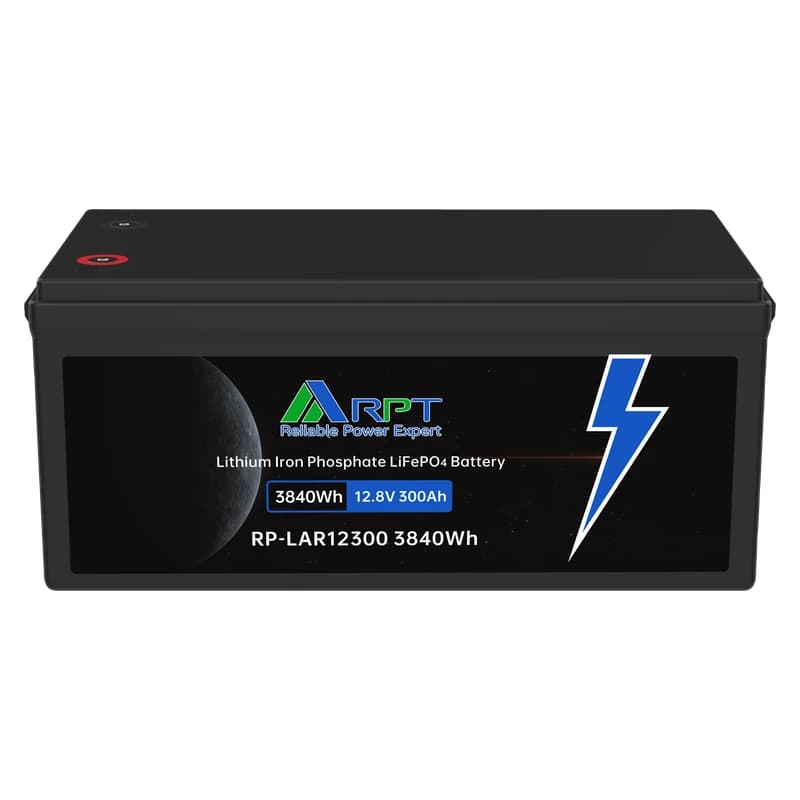

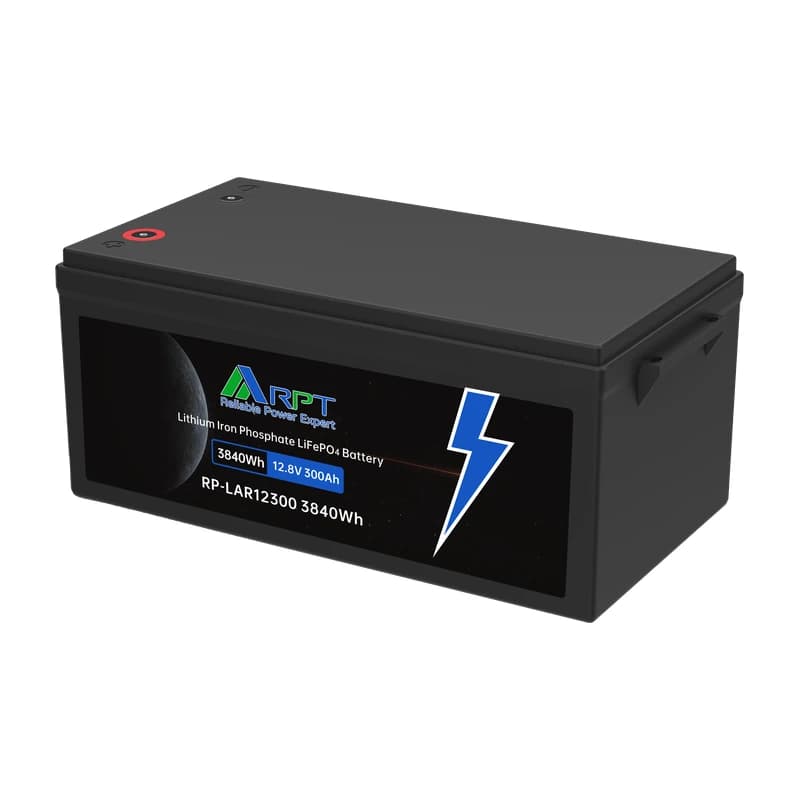

12.8V300Ah LiFePO4

Application

Applications

Questions & Answers for 12.8V300Ah LiFePO4
